Cincon

Cincon Electronics Co., Ltd. is a global supplier of switch mode power conversion products to the communications, computer, industrial, medical and consumer markets. They design and manufacture industry standard, RoHS compliant, DC-DC converters, AC adapters, open frame AC-DC power supplies and LED power supplies.

Their current offerings comprise over 3000 standard products including single & multiple output DC-DC converters from 1W to 700W, single & multiple output AC adapters from 5W to 150W, open frame AC-DC power supplies from 5W to 1600W and LED power supplies from 16W to 150W.

Cincon also offers modified standard and custom power conversion products. They are experts in the design and manufacturing of power supplies engineered to customer requirements. Emphasis is placed on reliability, rapid prototyping and adherence to cost targets.

Products are designed-for-manufacturability using the latest simulation techniques, test equipment and computer aided design tools. Their wholly owned, ISO 9001 & 14001 factories in Taiwan and China are outfitted with state-of-the art manufacturing equipment, including SMT pick-and-place assembly machinery.

Cincon Plugs and Cords - Use this resource to select the right cord and plug for your use.

AC/DC Power Supplies :: Tabletop | Wallmount

Series Datasheet Power Input Range Outputs Dimensions Features
TRG10R TRG10R Download » 10 90-264 VAC Single 2.8 x 1.8 x 1.4 inches AC-DC Switching Adapter
TRG15 TRG15 Download » 15 90-264 VAC Single 2.8 x 2.05 x 1.4 inches AC-DC Switching Adapter

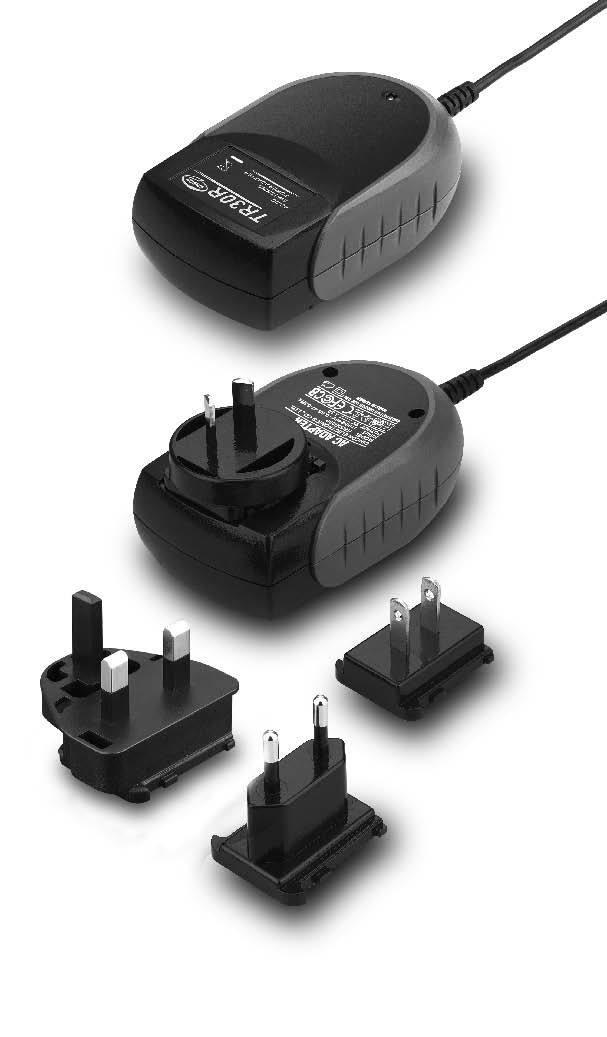

TR15RA TR15RA Download » 15 90-264 VAC Single 3.2 x 1.9 x 1.7 inches AC-DC Switching Adapter
TR15RAM TR15RAM Download » 15 90-264 VAC Single 3.2 x 1.9 x 1.7 inches AC-DC Switching Adapter
TRG25 TRG25 Download » 25 90-240 VAC Single 3.2 x 1.9 x 2.2 inches AC-DC Switching Adapter
TR30RAM TR30RAM Download » 30 90-264 VAC Single 4.3 x 2.4 x 1.4 inches AC-DC Medical Switching Adapter
TR30M TR30M Download » 30 90-264 VAC Single 4.3 x 2.0 x 1.2 inches AC-DC Switching Adapter
TR30P TR30P Download » 30 90-264 VAC Single 4.7 x 2.04 x 1.2 inches AC-DC POE Adapter
TRG36 TRG36 Download » 36 90-264 VAC Single 4.3 x 2.0 x 0.8 inches AC-DC Switching Adapter
TRG45 TRG45 Download » 45 90-264 VAC Single 4.7 x 2.0 x 1.2 inches AC-DC Switching Adapter
TR60M TR60M Download » 60 90-264VAC Single 5.2 x 2.8 x 1.2 inches AC-DC Medical Switching Adapter
TRG60A-POE-L TRG60A-POE-L Download » 60 90-264 VAC Single 5.9 x 2.7 x 1.4 inches AC-DC POE Adapter
TRG70 TRG70 Download » 70 90-264 VAC Single 5.2 x 2.3 x 1.2 inches AC-DC Switching Adapter
TRG70E TRG70E Download » 70 90-264 VAC Single 5.2 x 2.2 x 1.2 inches AC-DC Switching Adapter
TRG100A TRG100A Download » 100 90-264 VAC Single 5.9 x 2.7 x 1.8 inches AC-DC Switching Adapter
TRG150A TRG150A Download » 150 90-264 VAC Single 7.08 x 2.91 x 1.61 inches AC-DC Switching Adapter

AC/DC Power Supplies :: PCB Mount

Series Datasheet Power Input Range Outputs Dimensions Features
CBM100S CBM100S Download » 100 90-264 VAC Single 4.60 x 2.40 x 0.67 inches Wide Operating Temperature Range, 17mm Ultra Low Profile Package

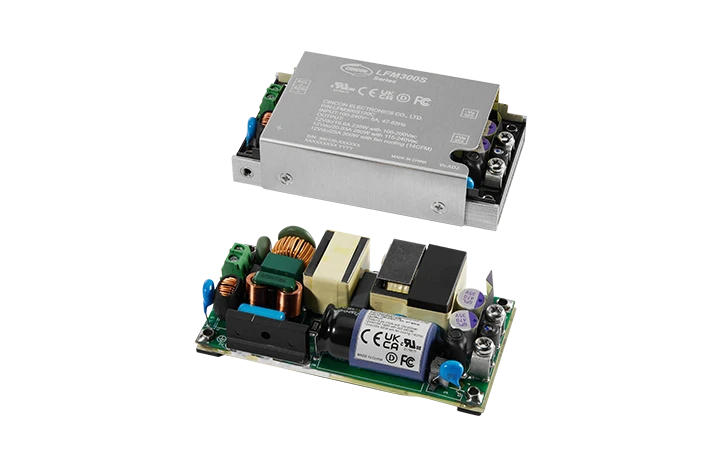

AC/DC Power Supplies :: Open Frame | Enclosed | U-Chassis

Series Datasheet Power Input Range Outputs Dimensions Features
CFM05 CFM05 Download » 5 85-264 VAC Single 2.165 x 1.378 x 0.827 inches AC-DC Converter Open Frame
CFM10 CFM10 Download » 10 85-264 VAC Single 2.599 x 1.772 x 0.906 inches Open Frame, PCB Mountable
CFM15 CFM15 Download » 15 85-264 VAC Single 2.752 x 1.890 x 0.906 inches Open Frame, PCB Mountable
CFM21 CFM21 Download » 20 90-264 VAC Single 2.4 x 1.6 x 0.8 inches AC-DC Converter Open Frame
TRG21 TRG21 Download » 20 90-264 VAC Single 3.0 x 1.8 x 0.9 inches AC-DC Switching Adaptor
CFM20 CFM20 Download » 20 85-264 VAC Single 3.501 x 2.000 x 0.906 inches AC-DC Converter Open Frame
TRG30RV TRG30RV Download » 30 90-264 VAC Single 2.24 x 2.7 x 1.3 inches AC-DC Switching Adaptor
TRG30RA TRG30RA Download » 30 90-264 VAC Single 4.3 x 2.4 x 1.4 inches AC-DC Switching Adaptor
CFM40C CFM40C Download » 40 90-264 VAC Single 5.433x2.323x1.894 inches AC-DC Enclosed/Din Rail Mountable
CFM40M CFM40M Download » 40 90-264 VAC Single 3.0 x 2.0 x 0.9 inches AC-DC Converter Open Frame
CFM40 CFM40 Download » 40 90-264 VAC Single 4.0 x2.0 x 1.2 inches (open)
4.7 x2.4 x 1.6 inches (w/ cover)
AC-DC Converter Open Frame
CFM40D/T CFM40D/T Download » 40 90-264 VAC Dual, Triple 4.0 x 2.0 x 1.1 inches
4.7 x 2.5 x 1.8 inches (w/ cover)
AC-DC Converter Open Frame
CFM60 CFM60 Download » 60 90-264 VAC Single 4.0 x2.0 x 1.2 inches (open)
4.7 x2.4 x 1.6 inches (w/ cover)
AC-DC Converter Open Frame
CFM60M CFM60M Download » 60 90-264 VAC Single 4.0 x 2.0 x 1.1 inches AC-DC Converter Open Frame
CFM60M CFM60M Download » 60 90-264 VAC Single 4.0 x 2.0 x 1.1 inches Open Frame, Medical Power Supply
CFM60T CFM60T Download » 60 90-264 VAC Triple 4.00 x 2.00 x 1.26 inches AC-DC Converter Open Frame
CFM80S CFM80S Download » 80 90-264 VAC Single 4.0 x 2.0 x 1.07 inches AC-DC Converter Open Frame
CFM101S CFM101S Download » 100 90-264 VAC Single 4.0 x 2.0 x 1.1 inches AC-DC Converter Open Frame
CFM100C CFM100C Download » 100 90-264 VAC Single 5.4 x 2.3 x 1.9 inches AC-DC Enclosed Power Supply, Can Be Installed on a DIN Rail TS-35/7.5 or 15
CFM100M CFM100M Download » 100 90-264 VAC Single 5.000 x 3.000 x 1.050 inches AC-DC Converter Open Frame
CFM150M CFM150M Download » 150 90-264 VAC Single 5.0 x 3.0 x 1.1 inches AC-DC Converter Open Frame
CFM201S CFM201S Download » 200 90-264 VAC Single 5.0 x 3.0 x 1.4 inches
5.4 x 3.5 x 2.0 inches (w/ cover)
AC-DC Converter Open Frame
CFM351M CFM351M Download » 350 90-264 VAC Single 5.0 x 3.0 x 1.5 inches AC-DC Converter Open Frame
CFM351M CFM351M Download » 350 90 - 264 VAC Single 6.500 x 4.000 x 1.516 inches AC/DC Power Supply, Open Frame / Enclosed
CFM361S CFM361S Download » 360 90 - 264VAC Single 5.390 x 3.425 x 1.697 inches AC/DC Power Supply, Open Frame / Enclosed / Cooling Baseplate Option
TRG500V TRG500V Download » 500 90-264 VAC Single 2.8 x 2.0 x 1.4 inches AC-DC Switching Adaptor
CFM750E CFM750E Download » 750 90-264 VAC Single 11.02 x 4.00 x 1.65 inches AC-DC Converter Enclosed
CFM1600H CFM1600H Download » 1600 90-264 VAC Single 11.52 x 5.54 x 1.63 inches AC-DC Converter Enclosed

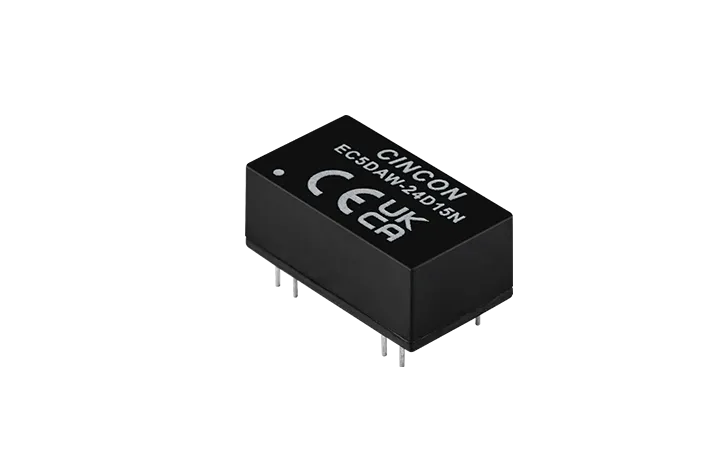

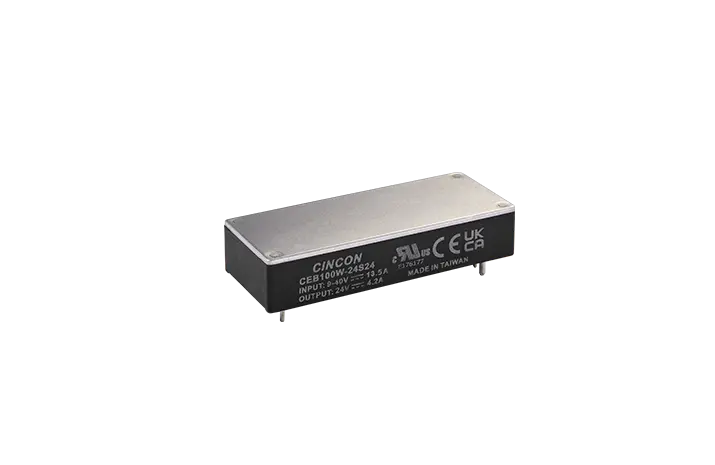

DC/DC :: PCB Mount

Series Datasheet Power Input Range Outputs Dimensions Features
EC1TAN EC1TAN Download » 1 24 VDC, 5 VDC Single 5V and 12V: 0.46 x 0.24 x 0.4 inches
24V: 0.46 x 0.3 x 0.4 inches
DC-DC Converter PCB Mount
EC1SAN EC1SAN Download » 1 Single SIP: 0.77 x 0.24 x 0.40inches
SIP (24V): 0.77 x 0.28 x 0.40
SMD Single: 0.5 x 0.31 x 0.27 inches
SMD Dual: 0.6 x 0.31 x 0.27inches
DC-DC Converter PCB Mount
EC2SAN EC2SAN Download » 2 5 VDC, 12 VDC, 24 VDC Single 0.77 x 0.28 x 0.4 inches DC-DC Converter PCB Mount
EC2SA EC2SA Download » 2 4.5-9.0 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual 0.86 x 0.36 x 0.44inches DC-DC Converter PCB Mount
EC3SAW EC3SAW Download » 3 9-36 VDC, 18-75 VDC Single, Dual 0.86 x 0.36 x 0.44 inches DC-DC Converter PCB Mount
EC3SA EC3SA Download » 3 4.5-9.0 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual 0.86 x 0.36 x 0.44 inches DC-DC Converter PCB Mount
EC3AE EC3AE Download » 3 5 VDC, 12 VDC, 24 VDC, 28 VDC, 48 VDC Single, Dual 0.8 x 1.25 x 0.4 inches DC-DC Converter PCB Mount
EC3A EC3A Download » 3 4.5-6 VDC, 9-18 VDC, 18-36 VDC, 36-72 VDC Single, Dual 0.8 x 1.25 x 0.4 inches DC-DC Converter PCB Mount
EC3AB EC3AB Download » 3 9-18 VDC, 18-36 VDC, 36-72 VDC Single, Dual DIP: 1.25 x 0.8 x 0.5 inches
SMD: 1.25 x 0.8 x 0.55 inches
DC-DC Converter PCB Mount
EC4AWH6 EC4AWH6 Download » 5 9-36 VDC, 18-72 VDC Single, Dual 1.25 x 0.8 x 0.4 inches DC-DC Converter PCB Mount
EC4A EC4A Download » 5 9-18 VDC, 18-36 VDC, 36-72 VDC Single 0.8 x 1.25 x 0.5 inches DC-DC Converter PCB Mount
EC4AB EC4AB Download » 5 9-18 VDC, 18-36 VDC, 36-72 VDC Single, Dual DIP: 1.25 x 0.8 x 0.5 inches
SMD: 1.25 x 0.8 x 0.55 inches
DC-DC Converter PCB Mount
EC4AW EC4AW Download » 5 9-36 VDC, 18-72 VDC Single, Dual DIP: 1.25 x 0.8 x 0.4 inches
SMD: 1.25 x 0.8 x 0.45 inches
DC-DC Converter PCB Mount
SIPSMT05-05 SIPSMT05-05 Download » 5 3.0-5.5 VDC, 4.5-5.5 VDC Single 0.9 x 0.4 x 0.2 inches POL Converter PCB Mount
SIPSMT05-12 SIPSMT05-12 Download » 5 8.3-14 VDC Single SIP Package: 0.9 x 0.4 x 0.22 inches
SMT Package: 0.8 x 0.45 x 0.24 inches
POL Converter PCB Mount
EC5A EC5A Download » 6 4.7-6 VDC, 9-32 VDC, 16-32 VDC, 19-32 VDC Single DIP: 1.25 x 0.8x 0.4 inches
SMD: 1.25 x 0.8 x 0.45 inches
DC-DC Converter PCB Mount
EC6A EC6A Download » 7 9-18 VDC, 18-36 VDC, 36-72 VDC Single, Dual DIP: 1.25 x 0.8 x 0.4 inches
SMD: 1.25 x 0.8 x 0.45 inches
DC-DC Converter PCB Mount
EC6AW EC6AW Download » 8 9-36 VDC, 18-75 VDC Single, Dual DIP: 1.25 x 0.8 x 0.4 inches
SMD: 1.25 x 0.8 x 0.45 inches
DC-DC Converter PCB Mount
EC3AW EC3AW Download » 9 9-36 VDC, 18-72 VDC Single, Dual 0.8 x 1.25 x 0.4 inches DC-DC Converter PCB Mount
EC4BW EC4BW Download » 10 9-36 VDC, 18-72 VDC Single, Dual 2.0 x 1.0 x 0.4 inches DC-DC Converter PCB Mount
EC2SB EC2SB Download » 10 5 VDC, 12 VDC, 24 VDC Single, Dual Standard: 1.0 x 1.0 x 0.4 inches
SMD: 1.0 x 1.0 x 0.36 inches
DC-DC Converter PCB Mount
EC2SBW EC2SBW Download » 10 9-36 VDC, 18-75 VDC Single, Dual 1.0 x 1.0 x 0.4 inches DC-DC Converter PCB Mount
EC4BU EC4BU Download » 10 4.7-9 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual 2.0 x 1.0 x 0.4 inches DC-DC Converter PCB Mount
EC7A EC7A Download » 10 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual DIP: 1.25 x 0.8 x 0.4 inches
SMD: 1.25 x 0.8 x 0.45 inches
DC-DC Converter PCB Mount
SIPSMT10-05 SIPSMT10-05 Download » 10 3.0-5.5 VDC, 4.5-5.5 VDC Single SIP Package: 2.0 x 0.5 x 0.33 inches
SMT Package: 1.3 x 0.53 x 0.4 inches
POL Converter PCB Mount
SIPSMT10-12 SIPSMT10-12 Download » 10 9.0-14 VDC Single SIP Package: 2.0 x 0.5 x 0.33 inches
SMT Package: 1.3 x 0.53 x 0.4 inches
POL Converter PCB Mount
SIPSMT10W-12	SIPSMT10W-12 Download » 10 6-14 VDC Single SIP Package: 2.0 x 0.5 x 0.33 inches
SMT Package: 1.3 x 0.53 x 0.4 inches
POL Converter PCB Mount
EC8AW EC8AW Download » 15 9 - 36 VDC, 18 - 75 VDC Single DIP: 1.25 x 0.8 x 0.4 inches DC-DC Converter PCB Mount
EC3SB EC3SB Download » 15 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual DIP: 1.0 x 1.0 x 0.4 inches
SMD: 1.0 x 1.0 x 0.36 inches
DC-DC Converter PCB Mount
EC3SBW EC3SBW Download » 15 9-36 VDC, 18-75 VDC Single, Dual 1.0 x 1.0 x 0.4 inches DC-DC Converter PCB Mount
EC1SB EC1SB Download » 15 18-36 VDC, 36-75 VDC Single 1.10 x 0.96 x 0.36 inches Open Frame DC-DC Converter PCB Mount
EC5C EC5C Download » 15 9-36 VDC, 18-72 VDC Single, Dual, Triple 2.0 x 2.0 x 0.4 inches DC-DC Converter PCB Mount
SIPSMT15-05 SIPSMT15-05 Download » 15 3-5.5 VDC Single SIP Package: 2.0 x 0.5 x 0.33 inches
SMT Package: 1.3 x 0.53 x 0.4 inches
POL Converter PCB Mount
SIPSMT16-12 SIPSMT16-12 Download » 16 9-14 VDC Single SIP Package: 2.0 x 0.5 x 0.33 inches
SMT Package: 1.3 x 0.53 x 0.4 inches
POL Converter PCB Mount
SIPSMT16W-12 SIPSMT16W-12 Download » 16 6-14 VDC Single SIP Package: 2.0 x 0.5 x 0.33 inches
SMT Package: 1.3 x 0.53 x 0.4 inches
POL Converter PCB Mount
EC7B EC7B Download » 20 9-18 VDC, 18-36 VDC, 36-72 VDC Single, Dual 1.0 x 2.0 x 0.40 inches DC-DC Converter PCB Mount
EC7BW EC7BW Download » 20 9-36 VDC, 18-75 VDC Single, Dual 1.0 x 2.0 x 0.4 inches DC-DC Converter PCB Mount
EC1SC EC1SC Download » 20 9-36 VDC, 18-72 VDC Single, Dual 2.0 x 1.6 x 0.45 inches DC-DC Converter PCB Mount
EC3SCW EC3SCW Download » 20 9-36 VDC, 18-75 VDC Single 2.0 x 1.6 x 0.4 inches DC-DC Converter PCB Mount
SIPSMT20W-12 SIPSMT20W-12 Download » 20 6-14 VDC Single SIP Package: 2.4 x 0.5 x 0.33 inches
SMT Package: 1.4 x 0.53 x 0.4 inches
POL Converter PCB Mount
EC2SC EC2SC Download » 25 9-18 VDC, 18-36 VDC, 36-75 VDC Single Metal Case: 1.6 x 2 .0 x 0.45 inches
Open Frame: 1.95 x 1.55 x 0.4 inches
DC-DC Converter PCB Mount
EC6C EC6C Download » 25 9-18 VDC, 18-36 VDC, 36-72 VDC Single, Dual, Triple 2.0 x 2.0 x 0.4 inches DC-DC Converter PCB Mount
EC5E EC5E Download » 25 9-18 VDC, 18-36 VDC, 36-72 VDC Single, Dual, Triple 2.56 x 3.0 x 0.83 inches DC-DC Converter PCB Mount
EC6E EC6E Download » 25 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual, Triple 2.56 x 3.0 x 0.83 inches DC-DC Converter PCB Mount
EC9B EC9B Download » 30 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual 2.0 x 1.0 x 0.4 inches DC-DC Converter PCB Mount
EC9BW EC9BW Download » 30 9-36 VDC, 18-75 VDC Single, Dual 2.0 x 1.0 x 0.4 inches DC-DC Converter PCB Mount
EC5SBW EC5SBW Download » 30 24V--9-36 VDC
48V--18-75 VDC
Single 1 x 1 x 0.40 inches
25.4 x 25.4 x 10.2 mm
DC/DC - PCB Mount

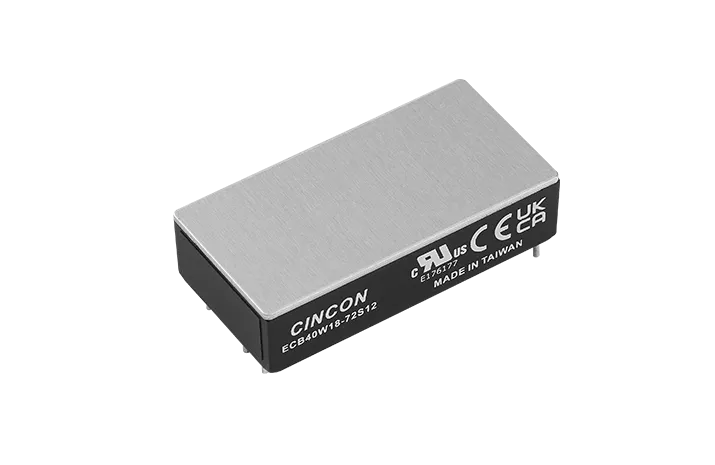

ECLB40W ECLB40W Download » 40 9-36 VDC, 18-75 VDC Single, Dual 2.05 x 1.2 x 0.4 inches DC-DC Converter PCB Mount
EC7C EC7C Download » 40 9-18 VDC, 18-36 VDC, 36-75 VDC Single, Dual, Triple 2.0 x 2.0 x 0.4 inches DC-DC Converter PCB Mount
CQE50W CQE50W Download » 50 9-36 VDC, 18-75 VDC Single 1.45 x 2.28 x 0.5 inches DC-DC Converter PCB Mount
CHB50 CHB50 Download » 50 9-18 VDC, 18-36 VDC, 36-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB50W CHB50W Download » 50 9-36 VDC, 18-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHE75W CHE75W Download » 75 9-36 VDC, 18-75 VDC Single, Dual 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CEB75 CEB75 Download » 75 36-75 VDC Single 2.3 x 0.9 x 0.39 inches DC-DC Converter PCB Mount
CQB75W CQB75W Download » 75 9-36 VDC, 18-75 VDC Single 1.45 x 2.3 x 0.5 inches DC-DC Converter PCB Mount
PKQ75 PKQ75 Download » 75 18-36 VDC, 36-75 VDC Single 1.45 x 2.3 x 0.5 inches DC-DC Converter PCB Mount
CHB75 CHB75 Download » 75 9-18 VDC, 18-36 VDC, 36-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB75W CHB75W Download » 75 9-36 VDC, 18-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB75-Dual CHB75-Dual Download » 75 18-36 VDC, 36-75 VDC Dual 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CQB100-110S CQB100-110S Download » 100 66-160 VDC Single 2.3 x 1.45 x 0.5 inches DC-DC Converter PCB Mount
CHE100 CHE100 Download » 100 18-36 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHE100W CHE100W Download » 100 9-36 VDC, 18-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CQB100W CQB100W Download » 100 9-36 VDC, 18-75 VDC Single 1.45 x 2.26 x 0.5 inches DC-DC Converter PCB Mount
CHB100 CHB100 Download » 100 18-36 VDC, 36-75 VDC Single 2.2 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB100W CHB100W Download » 100 9-36 VDC, 18-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CQB125 CQB125 Download » 125 36-75 VDC Single 2.3 x 1.45 x 0.42 inches DC-DC Converter PCB Mount
CHB150-110S CHB150-110S Download » 150 66-160 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB150 CHB150 Download » 150 36-75VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB150W CHB150W Download » 150 9-36 VDC, 18-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB200 CHB200 Download » 200 18-36 VDC, 36-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB200W CHB200W Download » 200 10-36 VDC, 18-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CHB300W CHB300W Download » 300 18-75 VDC Single 2.3 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CFB400W CFB400W Download » 400 9-36 VDC, 18-75 VDC Single 4.6 x 2.4 x 0.5 inches DC-DC Converter PCB Mount
CFB600W CFB600W Download » 600 18-36 VDC, 36-75 VDC Single 4.6 x 2.4 x 0.5 inches DC-DC Converter PCB Mount

AC/DC Power Supplies :: LED Driver

Series Datasheet Power Input Range Outputs Dimensions Features
DEB70 DEB70 Download » 14 90-305 VDC Single 15.0 x 1.2 x 0.8 inches LED Power Supply
LDP25 LDP25 Download » 17 90-305 VAC Single 5.5 x 1.2 x 0.8 inches LED Power Supply
LDP40 LDP40 Download » 34 90-305 VAC Single 6.6 x. 1.6 x 1.0 inches LED Power Supply
MLD MLD Download » 40 4.5-60 VDC Single 5.03 x 2.3 x 0.8 inches LED Power Supply
CLD50D CLD50D Download » 50 90-264 VAC Dual 11.8 x 1.4 x 1.0 inches LED Power Supply
LDP60 LDP60 Download » 60 90-305 VAC Single, Dual 10.3 x 1.6 x 1.0 inches LED Power Supply
LDM60 LDM60 Download » 60 90-305 VAC Single 8.1 x 1.6 x 1.1 inches LED Power Supply
LDM100S LDM100S Download » 100 90-305 VAC Single 9.0 x 1.6 x 1.1 inches LED Power Supply
